ZX-TC1 Desk Lamp

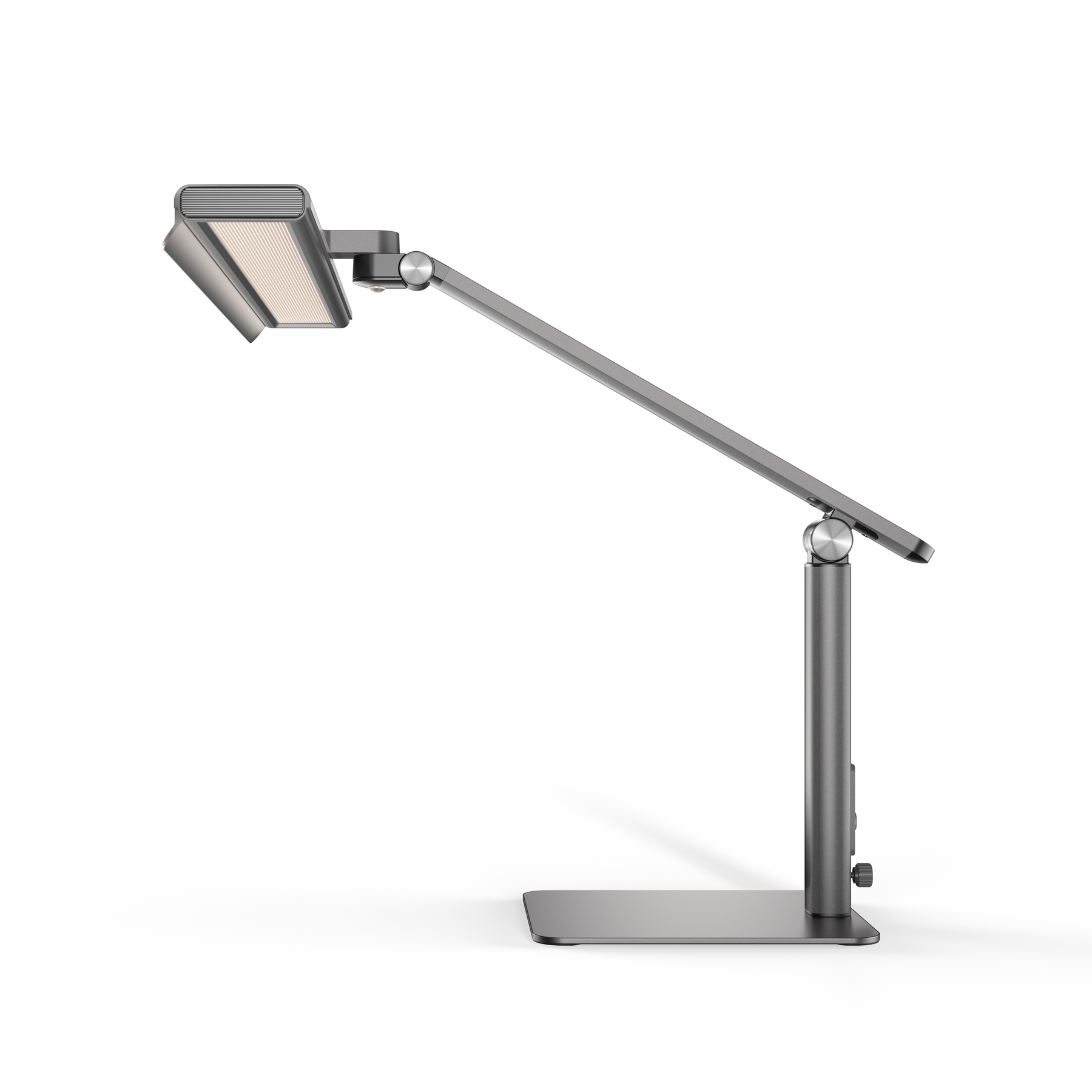

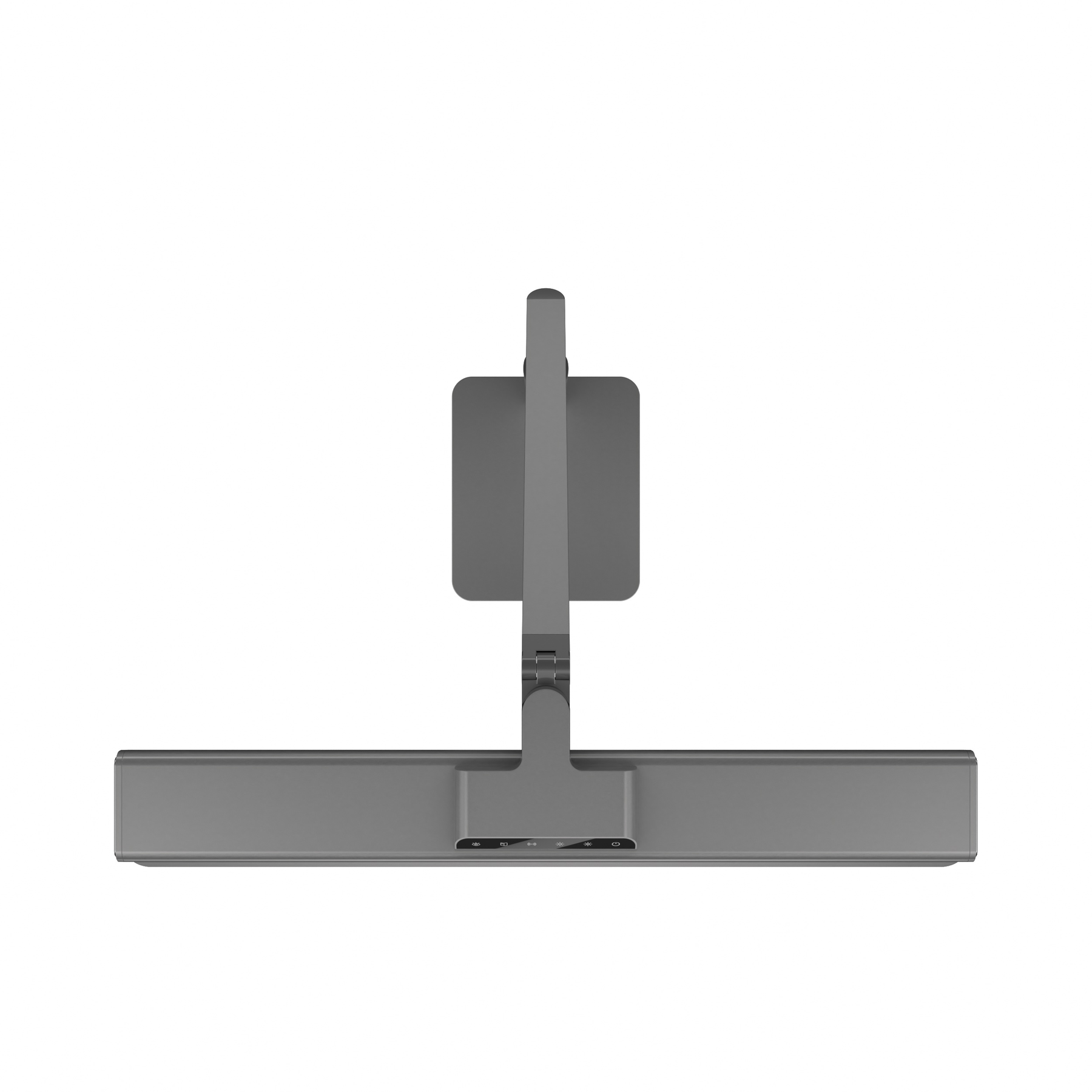

A compact desk luminaire with a side-emitting light panel and a two-section folding arm. Reading at 4000 K and comfort at 2700 K are selected from the head control panel, with five brightness steps and memory of the last setting. A seat sensor controls switching when the user sits down or leaves. The body combines aluminium alloy, ABS and PC parts.
Technical specifications
| Model | ZX-TC1 |
|---|---|
| Rated power | 18 W |
| Luminous flux | 563 lm (4000 K) 514 lm (2700 K) |
| Input voltage | AC 220 – 240 V, 50 Hz via an external 12 V / 1.5 A adapter |
| Colour temperature | 4000 K (measured 3,797 K) 2700 K (measured 2,675 K) |
| Colour rendering index (CRI) | Ra 96.2, R9 92 (4000 K) Ra 97.6, R9 89 (2700 K) |
| Dimming & control | 5 brightness steps and mode selection from the control panel on the head; seat sensor switches the luminaire on when the user sits down and off after the user leaves; last setting remembered |
| Dimensions | Head 570 × 82 × 33 mm base 220 × 186 × 5 mm upper arm 420 × 32 mm lower arm 260 × 38 mm |
| Material | Aluminium alloy with ABS and PC parts |
| Net weight | 1.95 kg |
Performance values follow the stated modes and conditions in the datasheet. Confirm the voltage and configuration for your destination market.
Product documentation
Download the ZX-TC1 datasheet
English PDF · 4 pages · 0.3 MB
