Desk Lamps

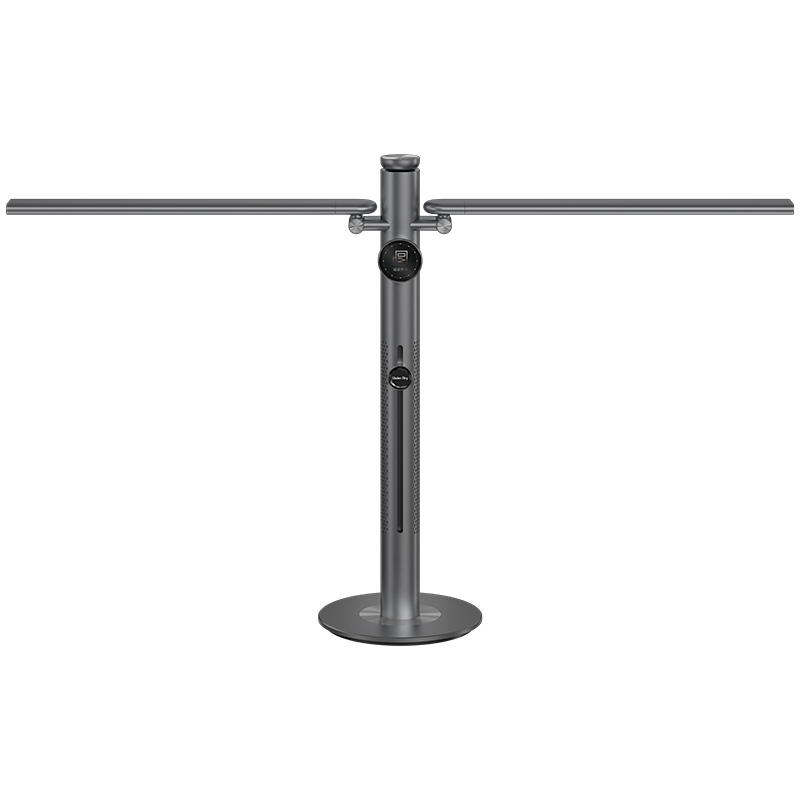

ZX-TS1 Adjustable Desk Lamp
A desk luminaire with two independently adjustable, three-axis light arms and side-emitting acrylic optics. A slide dimmer adjusts brightness continuously from 10% to 100%, while a rotary selector changes the white-light setting. The control panel offers reading, relax, sleep and candlelight modes, plus memory, a night-light function and a clock display in the pole.
Technical specifications
| Model | ZX-TS1 |
|---|---|
| Rated power | 27 W (measured 27.1 – 27.4 W over the three white settings) |
| Luminous flux | 528 lm (2700 K) 598 lm (3600 K) 658 lm (5000 K) |
| Input voltage | AC 220 – 240 V, 50 Hz |
| Colour temperature | 2700 K / 3600 K / 5000 K settings (measured 2,626 K / 3,856 K / 5,575 K) 1800 K gold channel |
| Colour rendering index (CRI) | Ra 96.6 (2700 K) Ra 93.9 (3600 K) Ra 97.0 (5000 K); R9 98 / 77 / 88 (measured) |
| Dimming | Stepless (continuous) 10 – 100 % brightness from the slide dimmer; colour temperature selected in steps with the rotary selector |
| Modes & controls | 3 + 1 scene modes selected from the control panel, with memory function; night-light function; screen clock display |

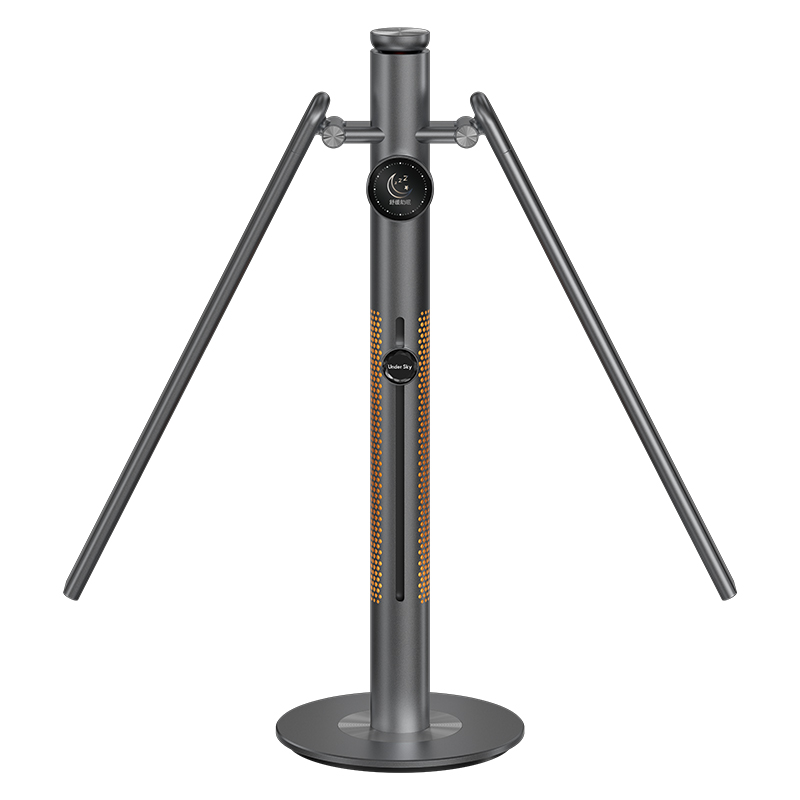

| Adjustment | Two light arms, three-axis adjustable |
| Dimensions (L × W × H) | 180 × 820 × 520 mm |
| Material | Steel, aluminium, acrylic |
| Net weight | 3.1 kg |
Performance values follow the stated modes and conditions in the datasheet. Confirm the voltage and configuration for your destination market.
Product documentation
Download the ZX-TS1 datasheet
English PDF · 3 pages · 0.3 MB
