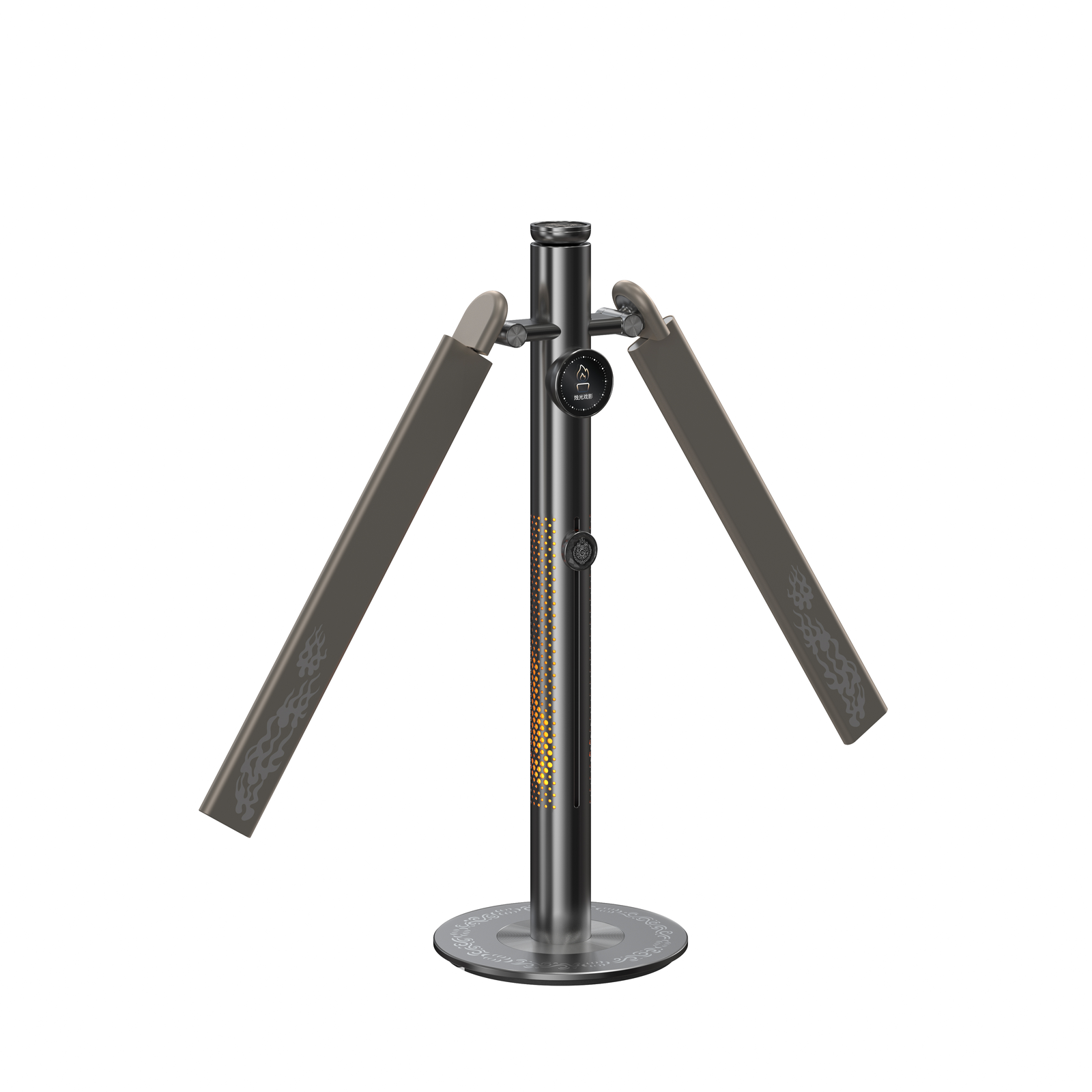

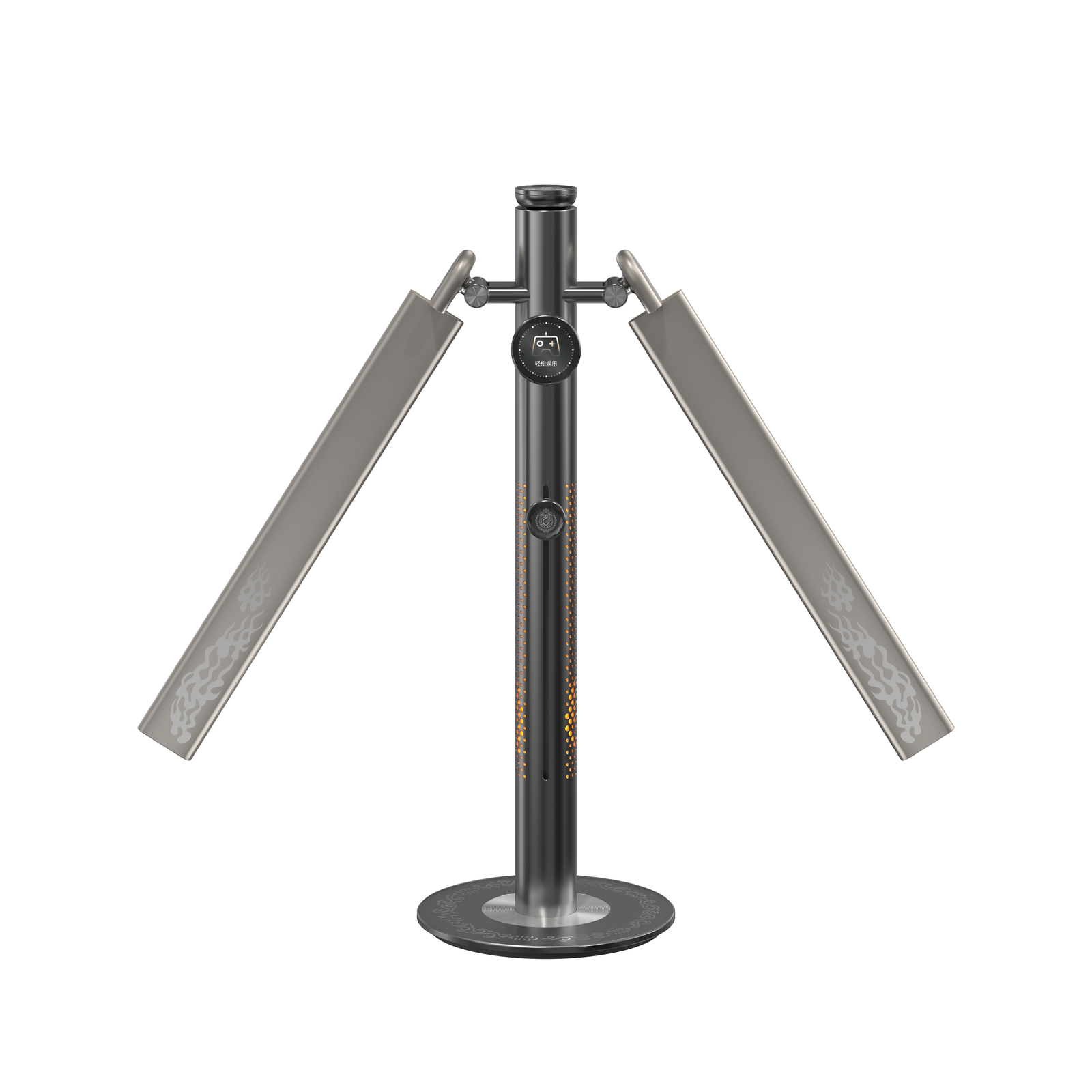

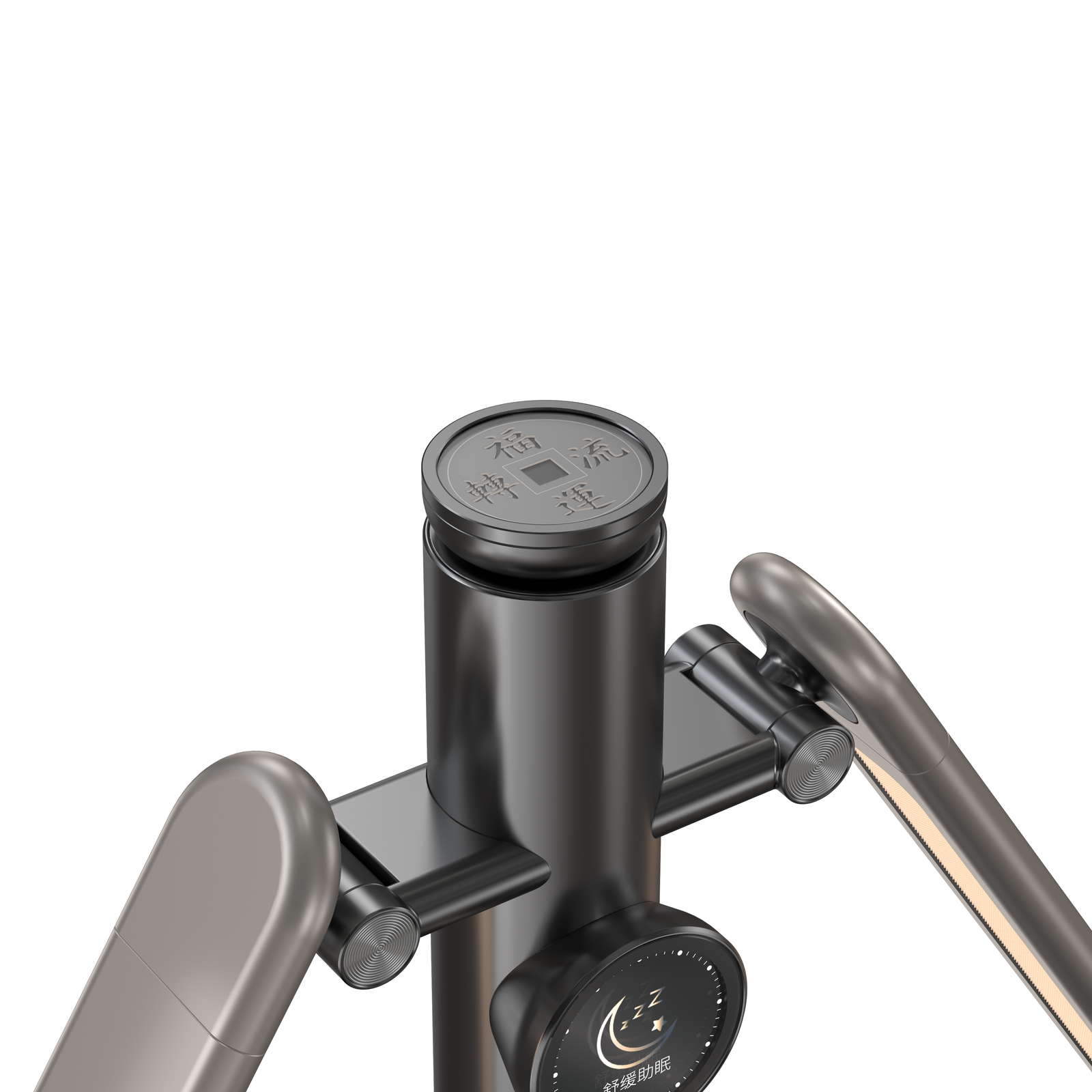

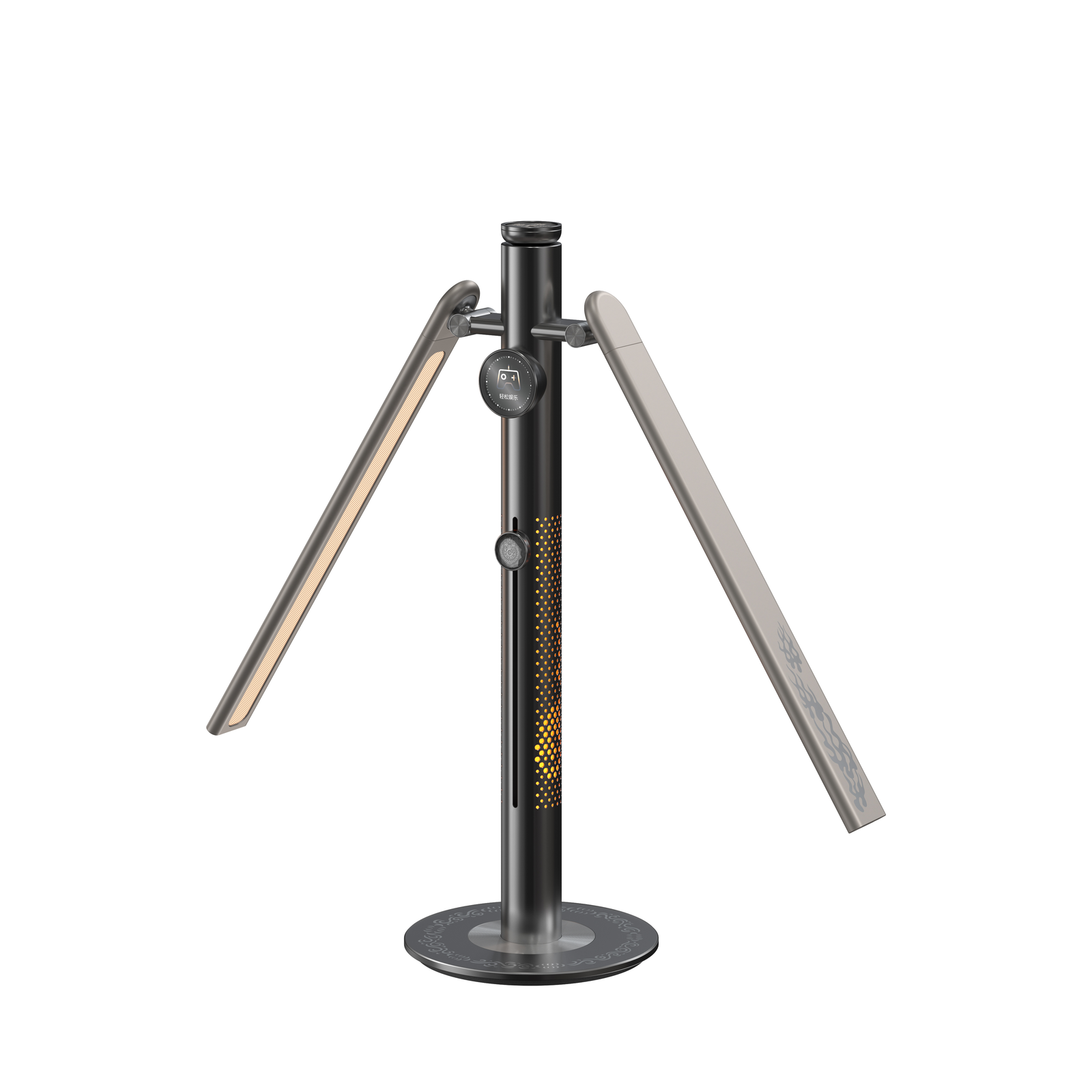

ZX-TS2 TS2PY Dual-Arm Desk Lamp
A dual-arm desk luminaire with three-axis arm adjustment and a separate decorative 1800 K gold-light column. White settings at 2700 K, 3600 K and 5000 K are selected from the rotary control; a slide dimmer adjusts brightness from 10% to 100%. Reading, Relax, Sleep and Candlelight presets, a pole clock display and setting memory are listed in the supplied datasheet.
Technical specifications
| Model | ZX-TS2 |
|---|---|
| Rated power | 30 W; measured 27.5-27.7 W in the white settings |
| Input voltage | AC 220-240 V, 50 Hz |
| Luminous flux (measured) | 2700 K: 437 lm 3600 K: 495 lm 5000 K: 540 lm |
| Colour temperature | 2700 K / 3600 K / 5000 K white settings; separate 1800 K decorative gold channel |
| Colour rendering index (CRI) | Measured Ra 93.7-97.0 in the white settings |
| Glare | UGR < 10, as stated in the supplied datasheet |
| Dimming | Stepless 10-100%; slide dimmer |
| Control | Rotary stepped colour selection; Reading / Relax / Sleep / Candlelight presets; setting memory; pole clock display |
| Adjustment | Two light arms, three-axis adjustable |
| Dimensions | 180 × 820 × 520 mm (L × W × H), as stated in the supplied datasheet |
| Material | Steel and aluminium with acrylic optics |
| Net / gross weight | 3.1 / 4.2 kg |
| Warranty | 5 years |
Performance values follow the stated modes and conditions in the datasheet. Confirm the voltage and configuration for your destination market.
Product documentation
Download the ZX-TS2 datasheet
English PDF · 3 pages · 0.3 MB
