ZX-F0257 S1 Pro Max Floor Lamp

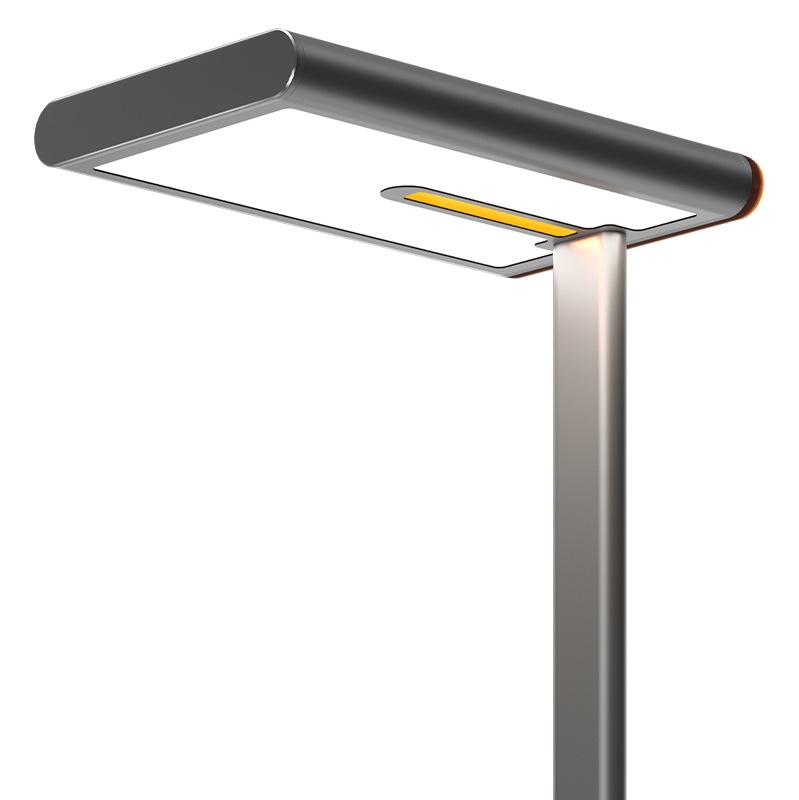

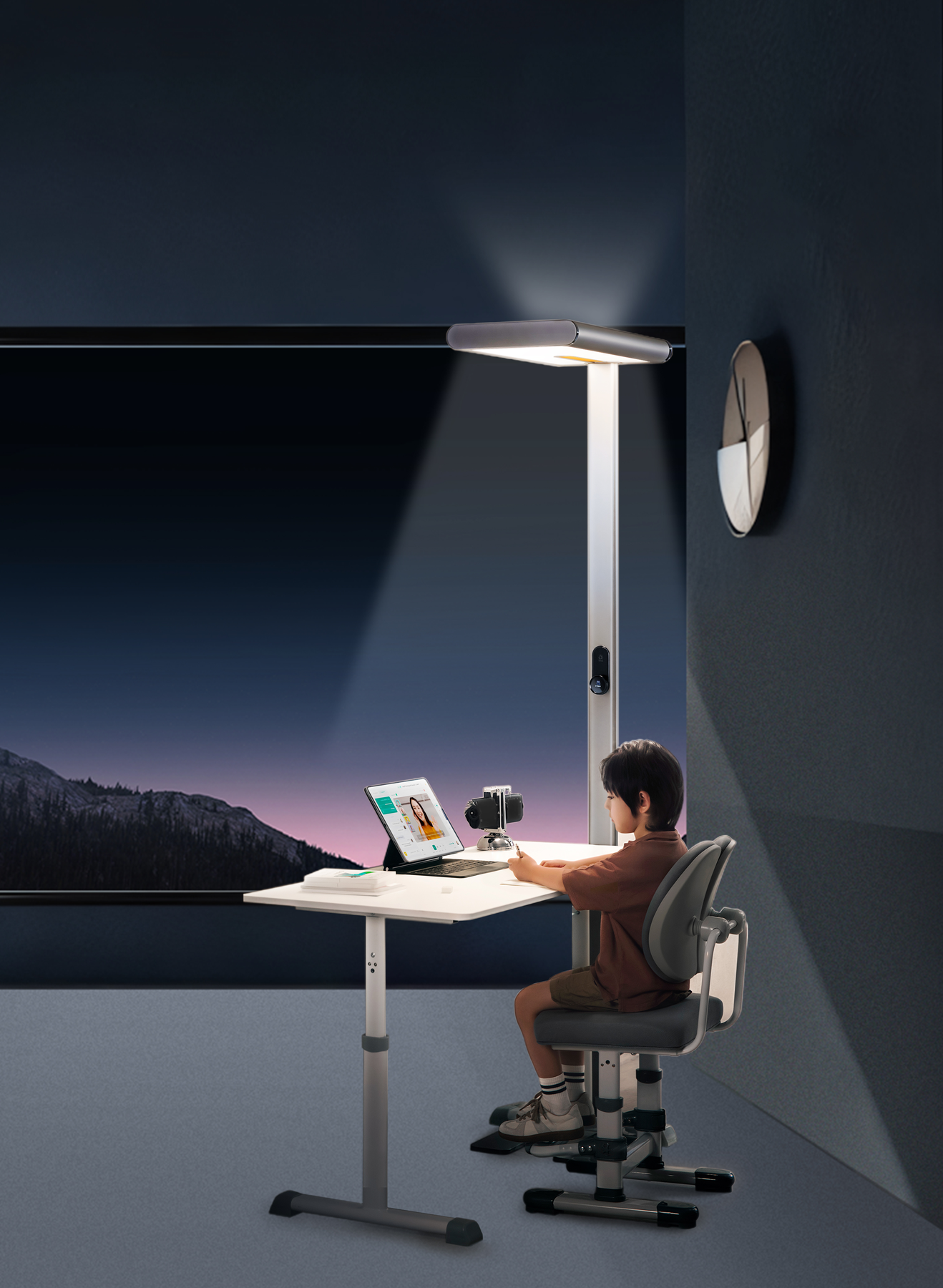

A free-standing luminaire for study and reading areas, with upward and downward light engines, four operating modes and a separate low-level gold-light setting. A rotary control adjusts brightness continuously from 10% to 100%. The aluminium body uses a PMMA prism diffuser.
Technical specifications
| Model | ZX-F0257 |
|---|---|
| Rated power | Reading 133 – 148 W Comfort 133 – 148 W Sleep 8 – 15 W Focus 110 – 130 W |
| Luminous flux | Reading > 7,600 lm Comfort > 4,800 lm Focus > 6,400 lm (± 8 %) |
| Input voltage | AC 220 V, 50 Hz |
| Colour temperature | Reading 3800 – 4000 K Comfort 2500 – 2900 K Focus 3800 – 4000 K |
| Colour rendering index (CRI) | Reading ≥ 96.6 Comfort ≥ 98 Focus ≥ 96.6 |
| Dimming | 10 – 100 % |
| Dimensions | 605 × 350 × 2,073 mm (± 5 mm) |
| Material | Aluminium body, PMMA high-transmission diffuser |
| Housing finish | Anodised aluminium; other colours available on request |
| Net weight | 20.45 kg |
| Control | Rotary knob for mode switching and brightness; one-touch access to the full-output mode |
| Beam angle | 73° |
Performance values follow the stated modes and conditions in the datasheet. Confirm the voltage and configuration for your destination market.
Product documentation
Download the ZX-F0257 datasheet
English PDF · 3 pages · 0.3 MB
