Floor Lamps
ZX-F0263SE Floor Lamp
A compact free-standing luminaire with 4000 K reading and 2700 K comfort modes. The touch panel offers ten brightness steps and an optional radar presence-sensor function. Power is supplied through an external 24 V / 48 W adapter, and the housing combines aluminium, a steel base plate and a PMMA optical panel.
Technical specifications
| Model | ZX-F0263SE |
|---|---|
| Rated power | Reading 48 W Comfort 46 W |
| Luminous flux | Reading 2,500 lm Comfort 2,300 lm (± 5 %) |
| Input voltage | AC 220 – 240 V, 50 Hz via external 24 V / 48 W adapter |
| Colour temperature | Reading 4000 K ± 200 K Comfort 2700 K ± 200 K |
| Colour rendering index (CRI) | Ra > 97 (main light), measured after 15 min operation |
| Dimming | 10 brightness steps over the 10 – 100 % range, operated from the + / - keys of the touch panel |
| Presence sensor | Radar presence detection, 4 m range; switch-off 10 min after the user leaves |
| Dimensions | 800 × 120 × 1,620 mm (+1/0 mm) |
| Material | Aluminium housing, steel base plate, PMMA optical panel |
| Packaged weight | 8.7 kg (packaged) |

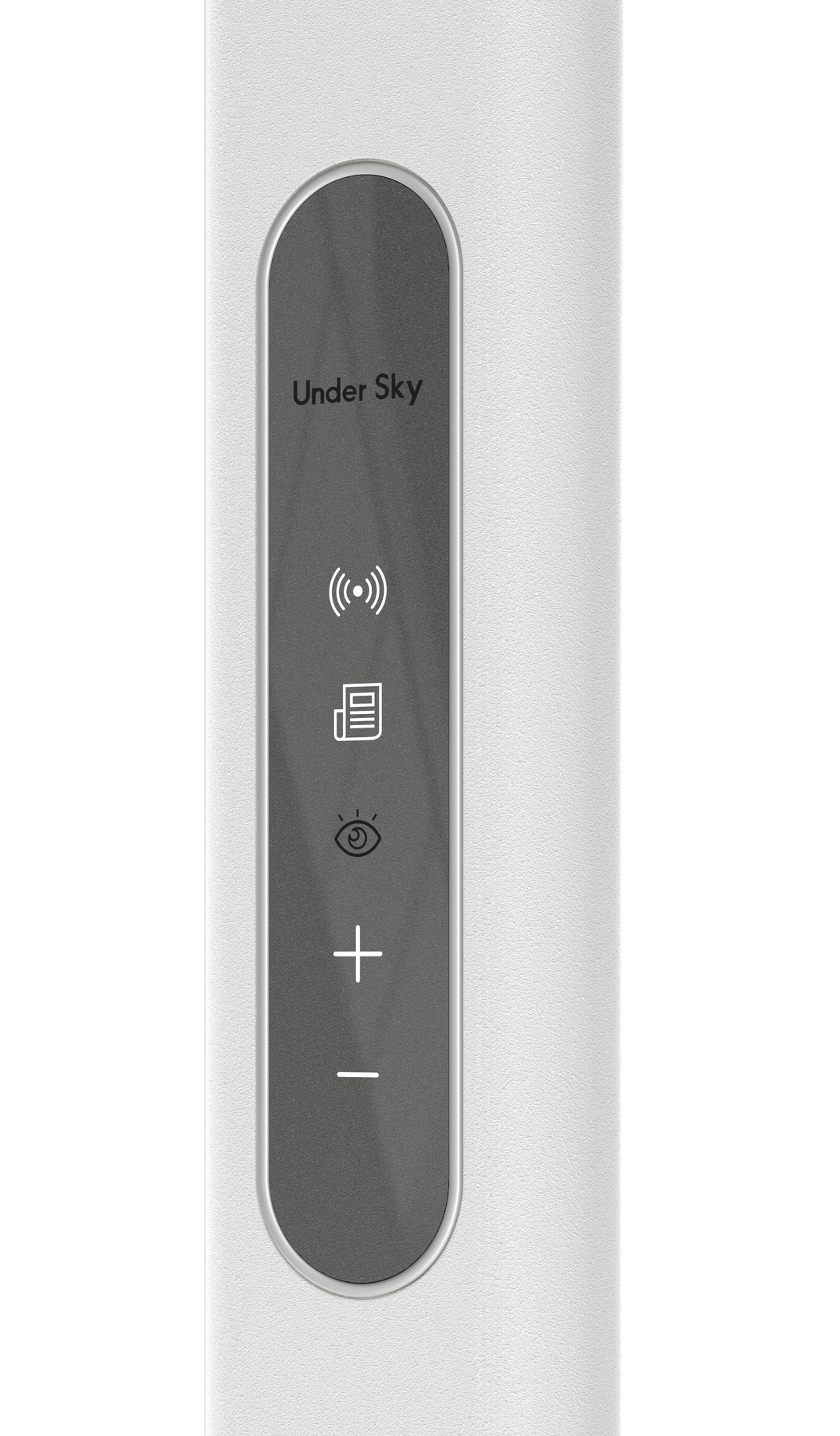

| Control | Touch panel — tap to switch mode, tap to enable / disable the radar sensor |
Performance values follow the stated modes and conditions in the datasheet. Confirm the voltage and configuration for your destination market.
Product documentation
Download the ZX-F0263SE datasheet
English PDF · 3 pages · 0.3 MB
