ZX-F0292 Floor Lamp

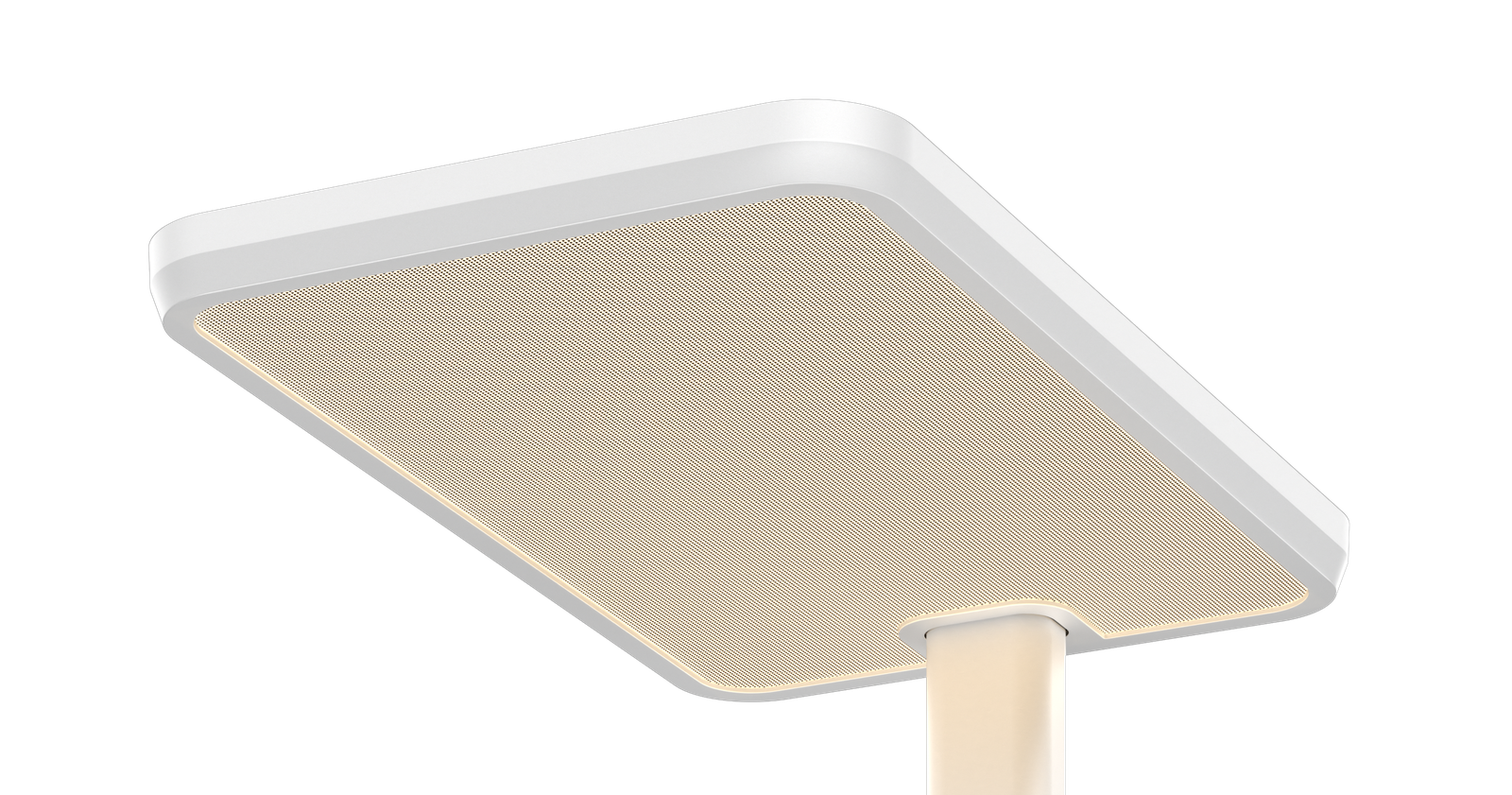

A free-standing LED luminaire with 4000 K reading, 2700 K warm and upper-only relax modes, plus a gold night-light setting. A rotary knob with display and touch keys control the modes and continuous dimming. The optical system combines a side-emitting light guide with a micro-prism diffuser, and a radar presence sensor provides automatic switching.
Technical specifications
| Model | ZX-F0292 |
|---|---|
| Rated power | 130 W (+ 5 %) |
| Luminous flux | Reading 8,000 lm Warm 6,500 lm Relax 6,000 lm (± 5 %) |
| Input voltage | AC 220 – 240 V (operating range 176 – 264 V), 47 – 63 Hz |
| Colour temperature | 4000 K ± 200 K 2700 K ± 200 K |
| Colour rendering index (CRI) | Ra > 97 (Reading) |
| Dimming | 10 – 100 % |
| Dimensions (head / base / height) | 588 × 356 × 31.5 mm / 450 × 320 × 7.5 mm / 2,025 mm (± 5 mm) |
| Material & finish | Aluminium body, PMMA + PC optics / white; any colour on request (powder coating) |
| Net weight | 12.2 kg |

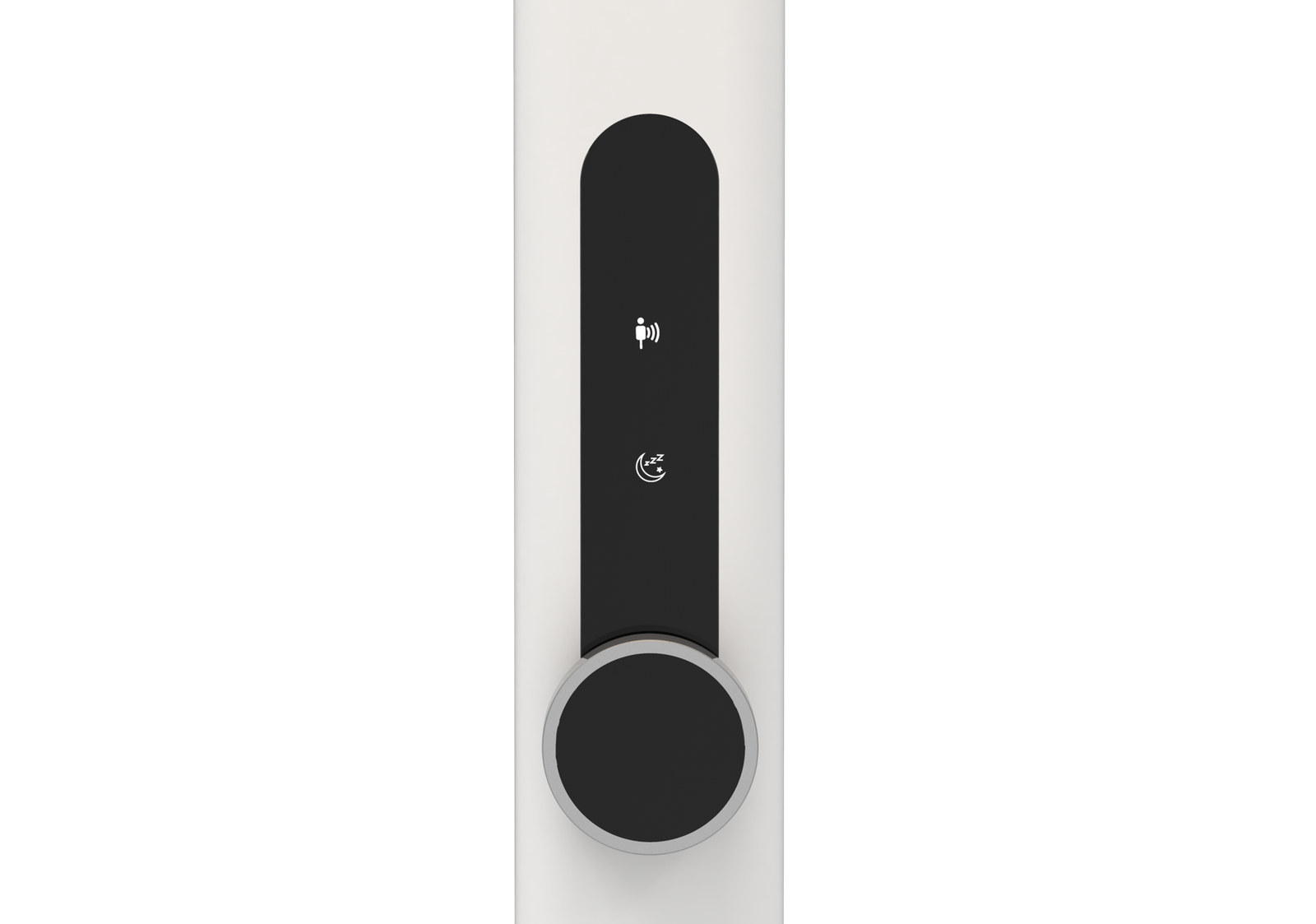

| Control | Rotary knob with display + touch keys; three preset modes plus one-touch night light |
| Presence sensor | Radar sensor — automatic switch-on; fades down after 15 min absence and switches off 1 min later |
Performance values follow the stated modes and conditions in the datasheet. Confirm the voltage and configuration for your destination market.
