ZX-F0712 Floor Lamp

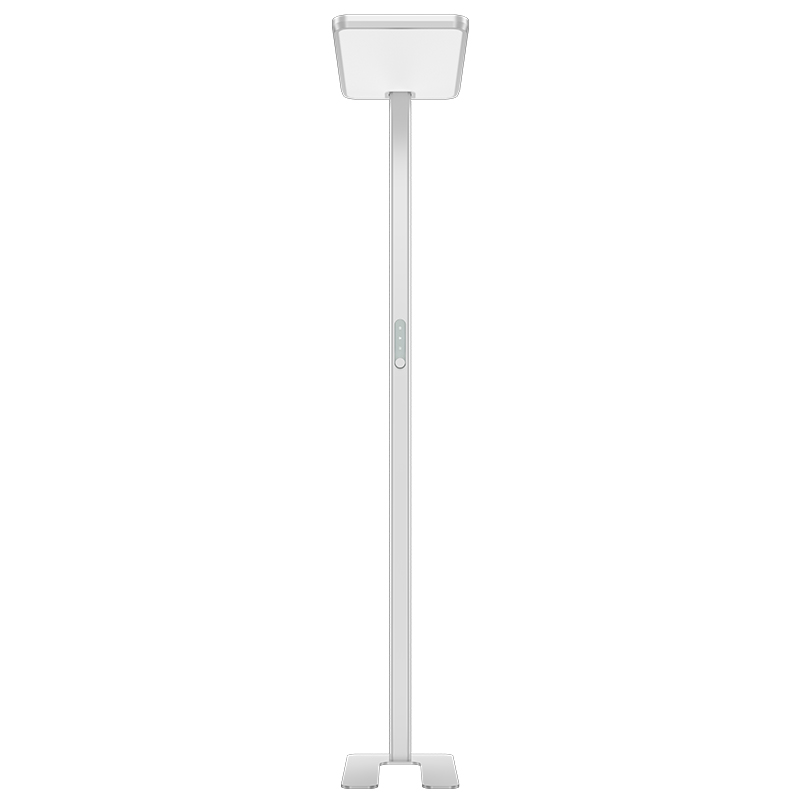

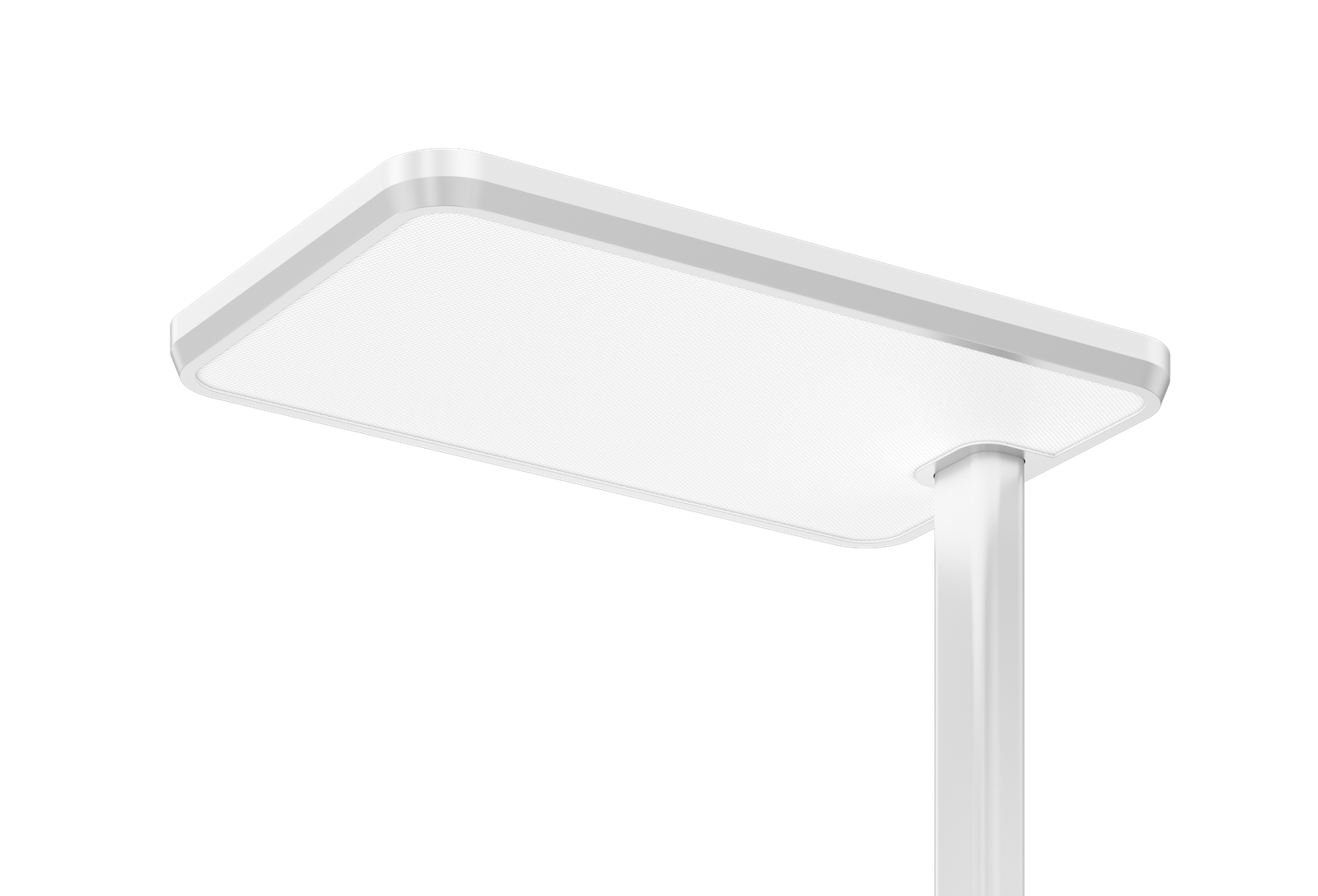

A free-standing LED luminaire with independent upward and downward 4000 K light sources. Three modes select both outputs, downward light only or upward light only. A rotary knob and touch keys provide continuous dimming, while a radar presence sensor controls automatic switching. The aluminium body uses a side-emitting light guide and a PMMA / PC optical kit.
Technical specifications
| Model | ZX-F0712 |
|---|---|
| Rated power | 130 W (+ 5 %) |
| Luminous flux | Upper 5,990 lm Lower 3,550 lm Total 9,540 lm (± 5 %) |
| Input voltage | AC 220 – 240 V (operating range 176 – 264 V), 47 – 63 Hz |
| Colour temperature | 4000 K ± 200 K |
| Colour rendering index (CRI) | Ra > 96 (upper) / Ra > 97 (lower) / Ra > 98 (upper + lower), measured after 15 min operation |
| Dimming | 10 – 100 % |
| Dimensions (head / base / height) | 588 × 356 × 31.5 mm / 450 × 320 × 7.5 mm / 2,025 mm (± 5 mm) |
| Material & finish | Aluminium body, PMMA + PC optics / white; any colour on request (powder coating) |
| Net weight | 12.2 kg |

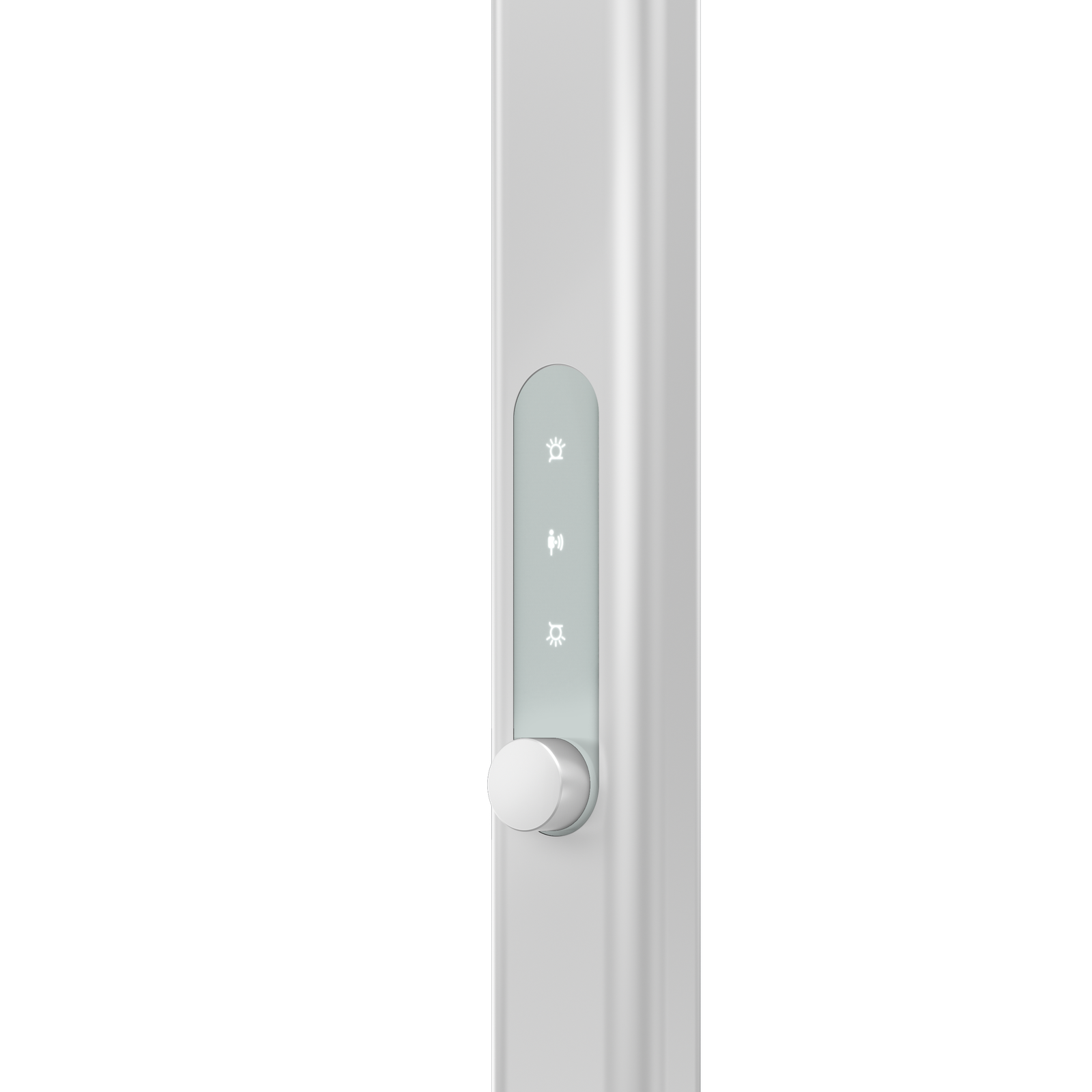

| Control | Rotary knob + touch keys; three preset output modes with smooth fade-in / fade-out |
| Presence sensor | Radar sensor — automatic switch-on; fades down after 15 min absence and switches off 1 min later |
Performance values follow the stated modes and conditions in the datasheet. Confirm the voltage and configuration for your destination market.
Product documentation
Download the ZX-F0712 datasheet
English PDF · 3 pages · 0.3 MB
Open datasheet in a new tabLet’s discuss your requirements
Discuss ZX-F0712 for your next order.
Share your destination market, quantity and customization requirements to discuss the offered configuration and sample scope.
