Floor Lamps

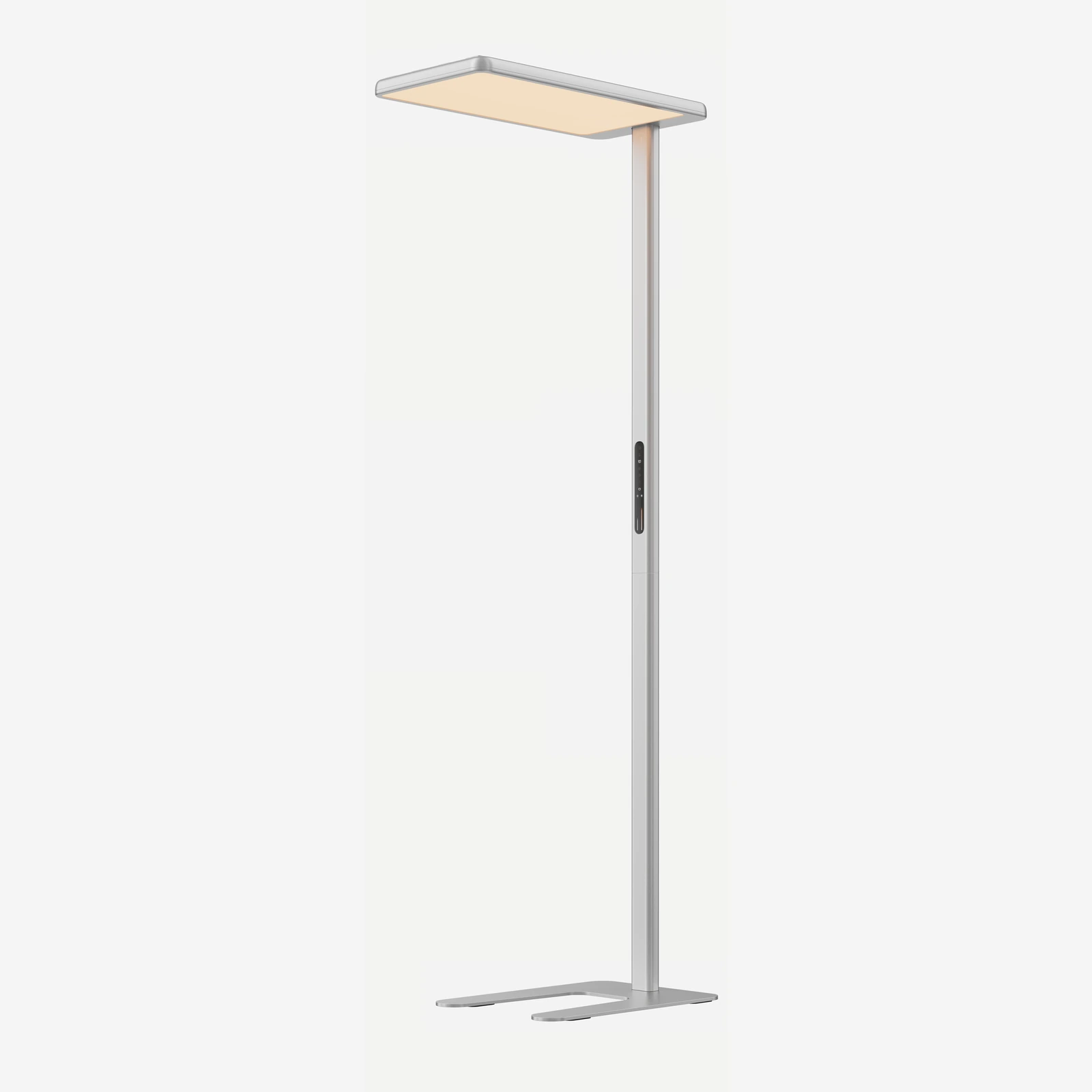

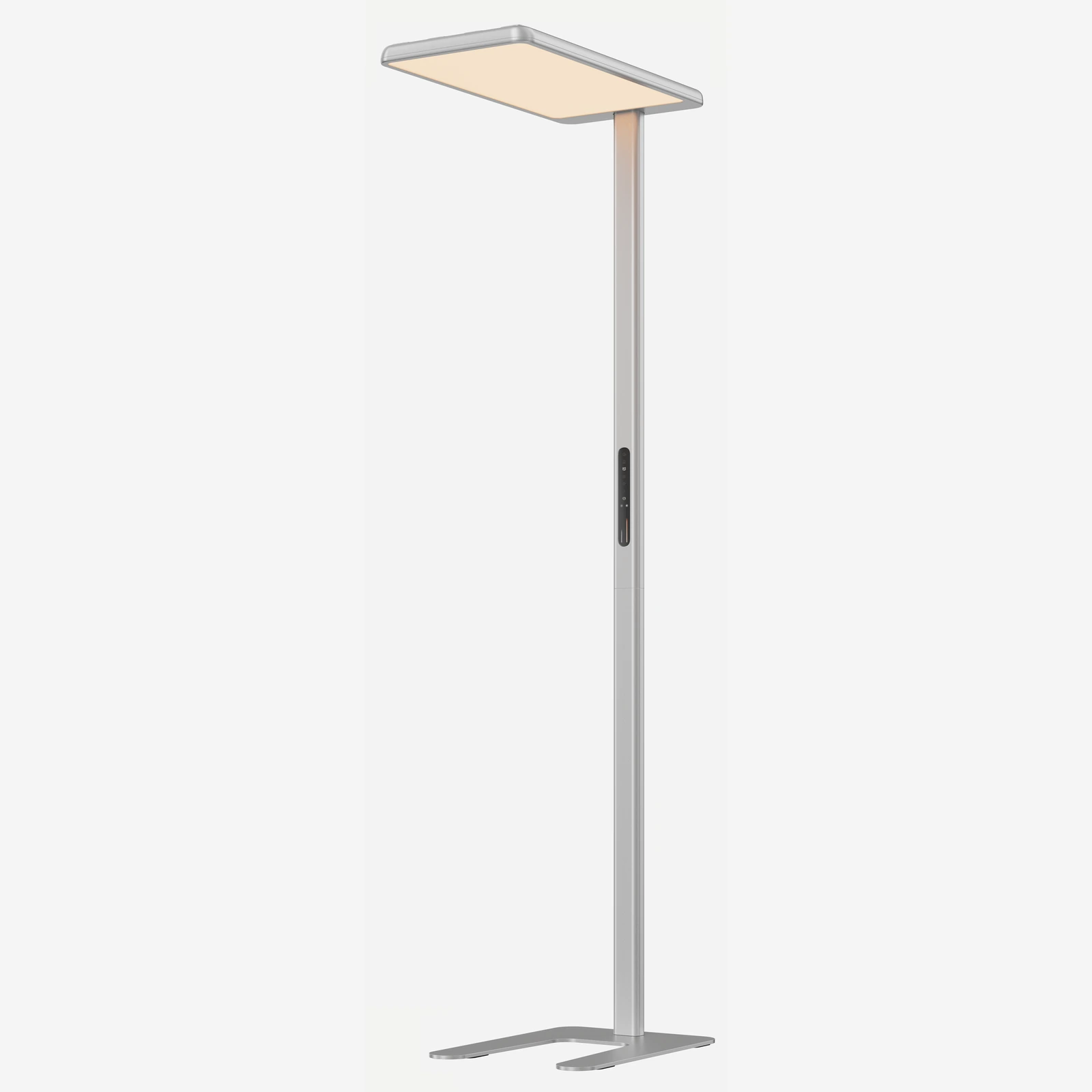

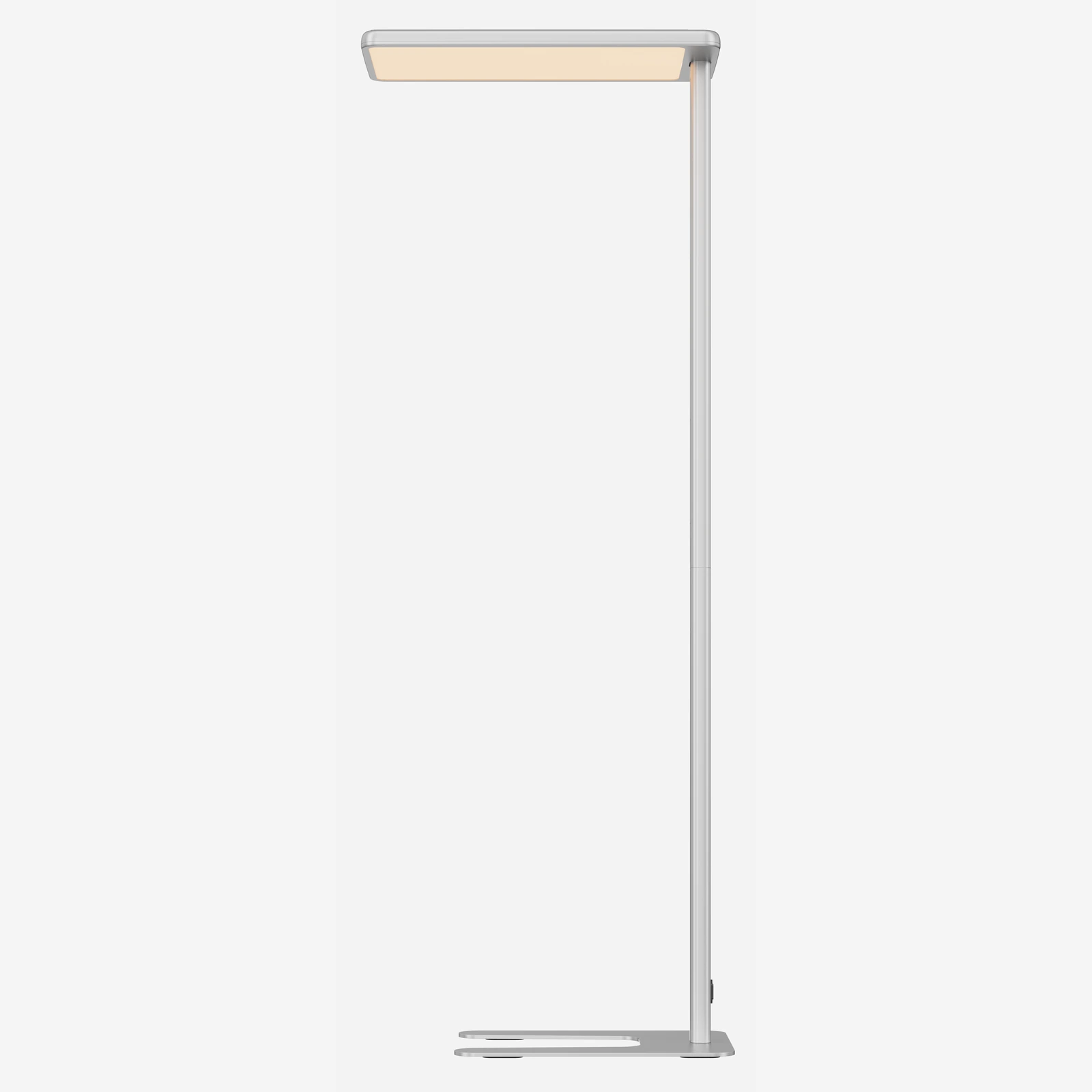

ZX-F0288 E3 Floor Lamp

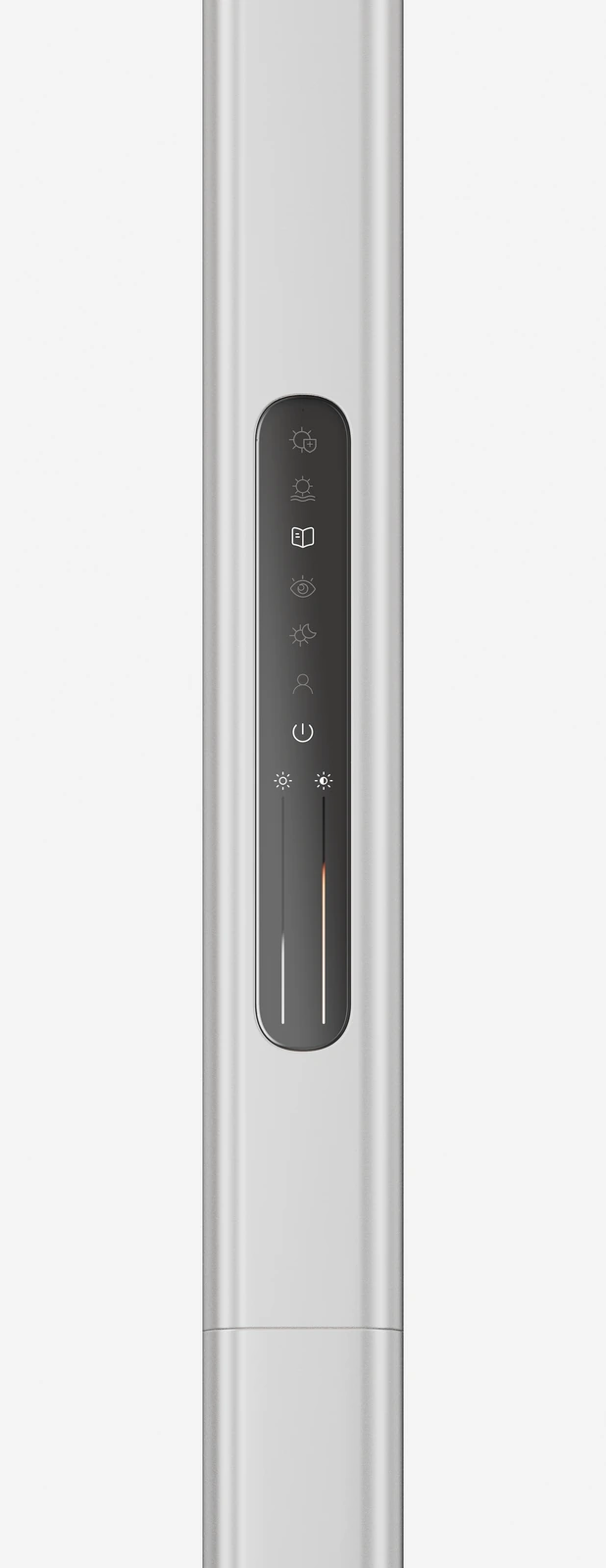

An E3 free-standing luminaire for home offices, study areas and living rooms, with independent upward and downward light engines. Reading, warm combined lighting, warm upward lighting and a Bright Light setting are selected from the control panel. A rotary control provides 10-100% dimming; the supplied datasheet also lists app control, a 24 GHz radar presence sensor and setting memory. Declared and measured light outputs are reported separately.
Technical specifications
| Model | ZX-F0288 |
|---|---|
| Rated power | 245 W; measured 206.2-207.7 W with both engines / 103.5 W upward only |
| Input voltage | AC 220-240 V, 50 Hz |
| Luminous flux (measured) | Reading: 10433 lm Warm combined: 8995 lm Warm upward only: 6700 lm |
| Luminous flux (declared specification) | Reading: 16665 lm Warm combined: 14609 lm Warm upward only: 8140 lm. These are declaration values, separate from sample measurements. |
| Colour temperature | 2700 K / 4000 K engines; Bright Light setting 2700-4000 K |
| Colour rendering index (CRI) | Measured Ra 97.4-98.5; R9 84-98, depending on engine and setting |
| Glare | UGR ≤ 9, as stated in the supplied datasheet |
| Dimming | Stepless 10-100%; rotary control |
| Control / modes | Reading; warm combined; warm upward only; Bright Light with breathing-light option; one-touch mode recall; mobile app; 24 GHz radar presence sensor; setting memory |
| Dimensions | 757 × 390 × 2027 mm |
| Material | Die-cast aluminium with 6063-T6 profile |
| Net / gross weight | 17.9 / 18.5 kg |
| Warranty | 5 years |
Performance values follow the stated modes and conditions in the datasheet. Confirm the voltage and configuration for your destination market.
Product documentation
Download the ZX-F0288 datasheet
English PDF · 3 pages · 0.3 MB
